PRODUCT DESCRIPTION

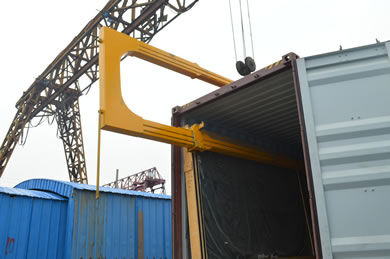

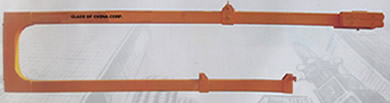

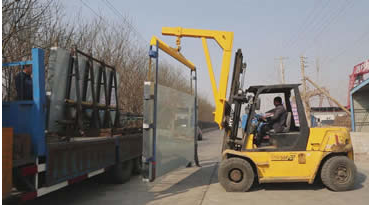

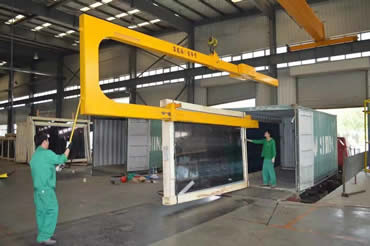

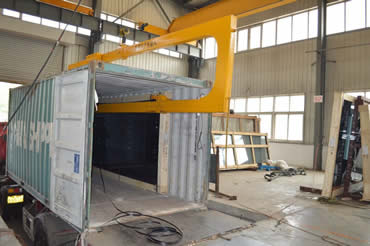

Container U-Shape Suspension arm

Container U-Shape Suspension arm is widely used in glass factory workshop, station, wharf and places where ocean freight containers need to be lifted. This equipment ingeniously uses mechanical balance principle and is able to lift 20-foot glass whose size is similar to the standard and high cube container. There is no need for manual coordination or forklift truck. Also, it can make no damage to glass and container making it safe and reliable to use. The arm make the cost lower, economically uses the field and exploits the driving advantages.

Technical reference:

Model: KLD-JZXD05

Elevating Capacity: 3500kg

Counter Weight: sliding and reciprocating

Arm Length: 6000mm

Suitable Specification: plates such as 2000, 2440, 3300, 3660, 5000mm

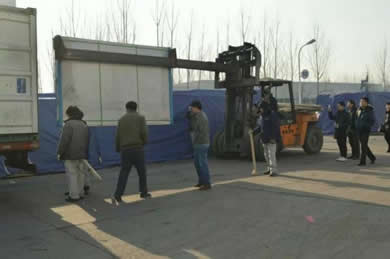

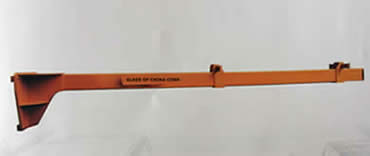

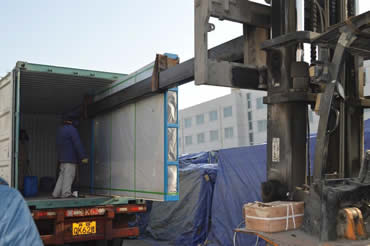

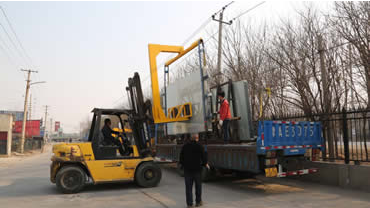

Forklift Truck Skewer

Forklift Truck Skewer is a specialized loading and unloading container glass tool. It has low purchasing cost and can be installed without any changes to forklift truck. It is adapt to the loading and unloading task of glasses in different sizes, thus making full suchlike proper structure, easy to operate, high performing efficiency and free of maintenance.(lengh:6.05m)

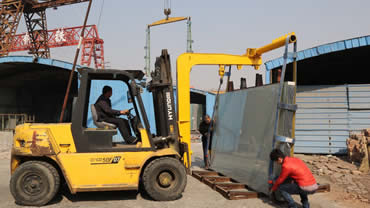

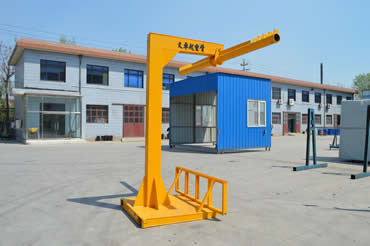

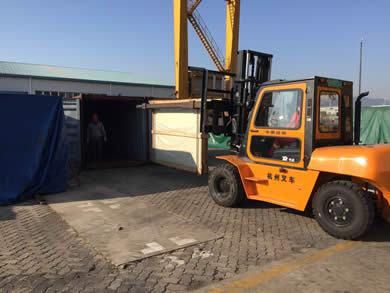

Base Forklift Truck Crane

For fork comparison high usage rate, the boom without frequent unloading fork, It can be used directly insert, stay close to the glass base frame, can be done without help of choose and employ persons shift over a long distance.

${51S_LH6SI0KBOOYX7O]D9K.png$

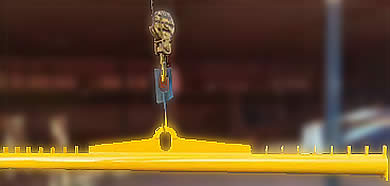

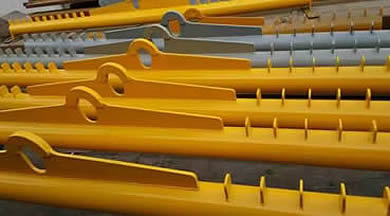

New Type Hanging Bar,Glass Sling

New type Hanging Bar concentrated the advantage of other Hanging Bar, according to differentiation on the surface of the glass(such as the compatibility of glass length is 3300 ,3660 and Hanging Bar that width is 10CM ), The perfectionist new type Hanging Bar which designed by 3D can adapt length is 2000mm-3660mm regular glasses. The diameter of seamless steel tube is increased to 146mm, Industrial grade 2 protect welder deep penetration welding, to ensure the safety of the use. The sling up each gear has marked the specifications of the labeling, that makes easier.

Technical Parameters:

New type Hanging Bar
Model: KLD-XSDG08	Length: 3150 mm
Number: Eight	Diameter:146mm
Glass length to lift : 2000/2200/2400/3050/3300/3600(mm)

Trapeze Set-top Forklift Truck Crane

It can remove loading and unloading in Small local warehouse door or workshop.

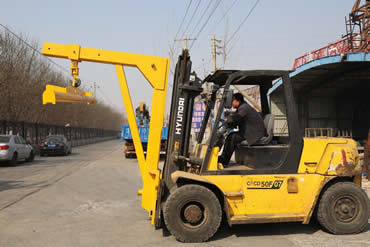

New-style Forklift Truck Crane Arm

The crane arm is from western design concept, the use of the material increased thickening, and the bearing parts to make triangle support, especially applicable for super-heavy goods.

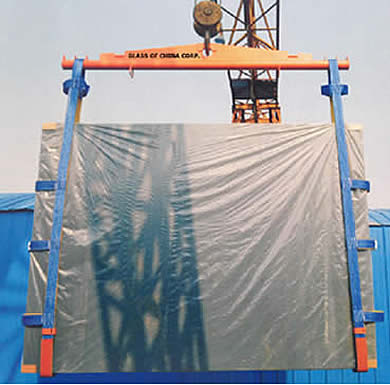

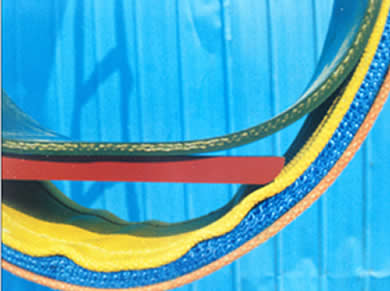

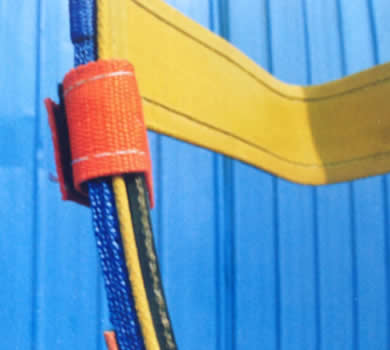

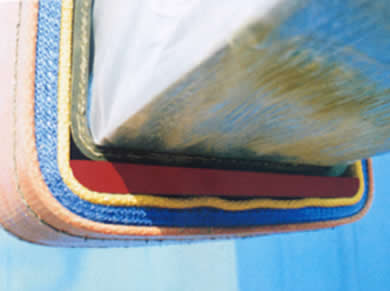

Glass Exclusive Suspender

The suspender utilizes high-intensity polyester tread as the carrying core, and adds high-tech materials in the inner glass contact area as the anti-cutting layer. Also, it originally creates the R-angle all-steel plate base which can be used life-long. The design of this product conforms to mechanics principle to distract weight with perfect details. It weighs 9 kilograms heavier the products of same kind with 2 times longer service time.

Storage Tools

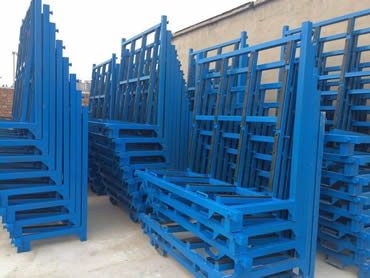

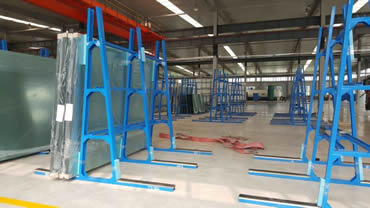

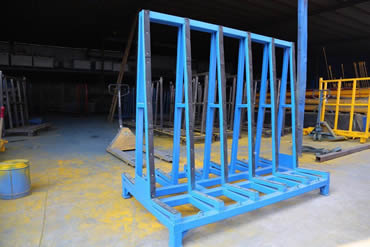

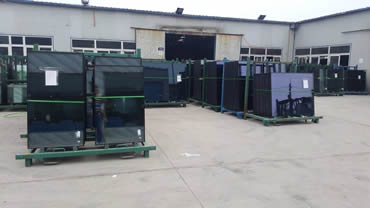

(A) Glass Stock Rack

A-shape shelf including storage rack and transport shelf . The products are selected national standard material, safe and reliable. A shape shelf 4 bags of large glass plate can be stored at each side (the size can be customized). It can be meet the need of long-distance transportation for glasses. And those two shelf can be customized according to glass specification.

Raw glass stock rack, this shelf is specific to large glass factory and factory, and it is suitable for the glass warehousing and storage for the single specification of glass.

L-shape shelf, we can process according to machine specifications or customer requirements .

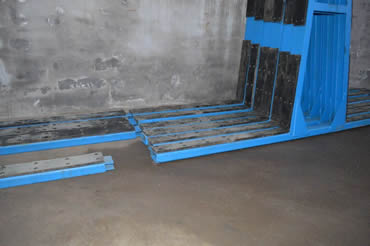

(L) Glass Stock Rack

Glass Stock rack includes L-shape shelf and raw glass stock rack.

L-shape shelf a multi-functional glass stock rack integrating storage and transport all-in-one. It is the first choice to store fragmented glass or finished glass. Shelf angle strictly controlled at 90 degrees, so it will never be slipped for the Hollowed Glass. With crown block and forklift truck, it can move glasses with great stability. And also can be directly handling by Crane. The shelf can be overlaid one by one to save storage space, transport space and improve utilization rate if warehouse.

The regular specification:

1. Length 1800*Height1600*Width750mm, effective glass-storing thickness reaches 540mm, exquisite and agile, suitable for small truck transport shelf back to back.

2. Length 1800*Height1600*width950mm, effective glass-storing thickness reaches 690mm, suitable for middle truck transport.

3. Length 1800*Height1600*width 1150mm, effective glass-storing thickness reaches 890mm, suitable for big truck transport.
